WSUVTPM10KF Technical Specifications

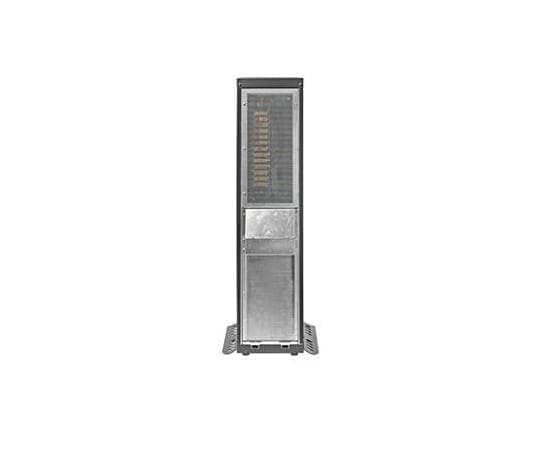

Smart-UPS VT AIS Spare Power Module 10kVA

Physical
Maximum Height
9.25inches (235MM, 23.5CM)
Maximum Width
23.0inches (584MM, 58.4CM)
Maximum Depth
28.5inches (724MM, 72.4CM)
Net Weight
115.0lbs. (52.27KG)
Shipping weight
173.0lbs. (78.64KG)
Shipping Height
31.5inches (800MM, 80.0CM)
Shipping Width
30.5inches (775MM, 77.5CM)
Shipping Depth
36.0inches (914MM, 91.4CM)
Units per Pallet
1.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-50 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Conformance
Approvals
cUL Listed, ISO 14001, ISO 9001, UL 1778
