SUA500PDR-S Technical Specifications

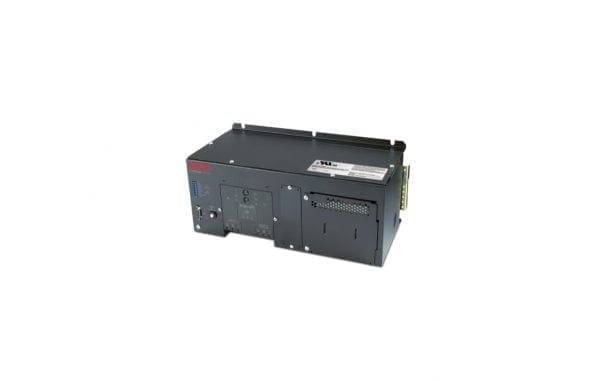

APC Industrial Panel & DIN Rail UPS with Standard Battery UPS 325 Wat

Manufacturer :APC
Brand :APC
Product Line :APC
Model :Industrial Panel and DIN Rail UPS with Standard Battery
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Power Device
Form Factor :DIN rail mountable
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :325 watt
Power Capacity (VA) :500 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Qty :1
Surge Suppression :Yes
Surge Energy Rating :540 joules
Circuit Protection :Circuit breaker
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (1PH + N + G)
Battery
Run Time (Up To) :8 minute (time unit)
Load Type :At full load
Recharge Time :2.5 Hours
Run Time Details
Run Time (Up To) :8 min at full load, 24 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :UL, UL 1449, RoHS, REACH
Dimensions & Weight
Width :14.3 inch
Depth :6.7 inch
Height :5.8 inch
Weight :28.35 lbs
Dimensions & Weight (Shipping)
Shipping Width :11.7 inch
Shipping Depth :11.7 inch
Shipping Height :18.9 inch
Shipping Weight :29.37 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
