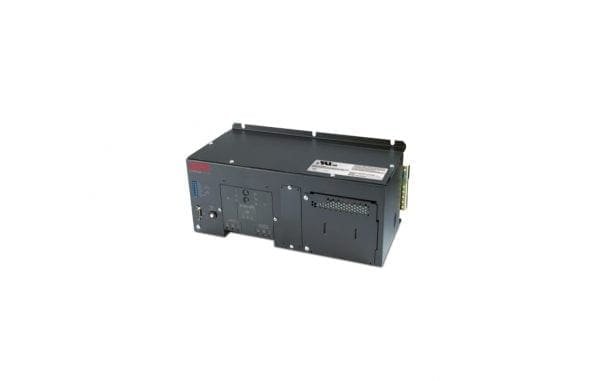

SUA500PDR-H APC DIN Rail Panel Mount UPS with High Temp Battery

Call for Price

SUA500PDR-H Overview

APC Smart-UPS is the popular UPS in the world for servers, storage and networks. It is trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS has extremely high efficiency at low, medium and high load levels making it ideal for the multi-core or virtualized servers that have varying load consumption. Smart-UPS has long been considered the benchmark for all network and server UPSs. Smart-UPS features a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.

Compare
Add to wishlist
SKU: SUA500PDR-H Categories: ,
Description

SUA500PDR-H Technical Specifications

APC DIN Rail – Panel Mount UPS with High Temp Battery 500VA 120V

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x RS-232 – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Signal cable
Power Device
Form Factor :DIN rail mountable
Voltage Provided :AC 120 volt
Frequency Provided :57 – 63 hertz
Power Provided :325 watt
Power Capacity (VA) :500 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :LED indicators, Remote Emergency Power Off (REPO), Audible alarm
Battery
Recharge Time :2.5 hour(s)
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color Category :Black
Compliant Standards :UL 1449
Dimensions & Weight
Width :14.3 inch
Depth :6.7 inch
Height :5.8 inch
Weight :25.31 lbs
Dimensions & Weight (Shipping)
Shipping Width :18.9 inch
Shipping Depth :11.7 inch
Shipping Height :11.7 inch
Shipping Weight :29.32 lbs
