SU700X93 Technical Specifications

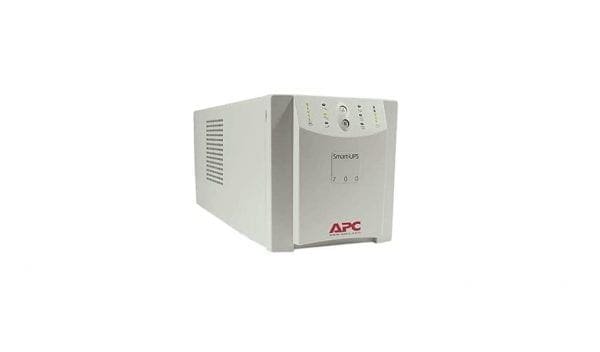

APC Smart-UPS 700VA 120V Shipboard

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :700VA Shipboard
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external, Power cable – integrated – 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
UPS Output Waveform :Sinewave
Power Provided :450 watt
Power Capacity (VA) :700 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 92 – 147 V
Input Voltage Range (Adjustable) :AC 86 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :4
Surge Suppression :Yes
Surge Energy Rating :320 joules
Circuit Protection :Circuit breaker
Power Device Features :LED indicators, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15
Battery
Run Time (Up To) :5.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :18.6 min at half load, 5.8 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Beige
Color Category :Beige
Compliant Standards :FCC Class A certified, UL 1449, UL 1778, CSA
Dimensions & Weight
Width :5.4 inch
Depth :14.1 inch
Height :6.2 inch
Weight :29.06 lbs
Dimensions & Weight (Shipping)
Shipping Width :10.7 inch
Shipping Depth :19.5 inch
Shipping Height :11 inch
Shipping Weight :32.08 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
