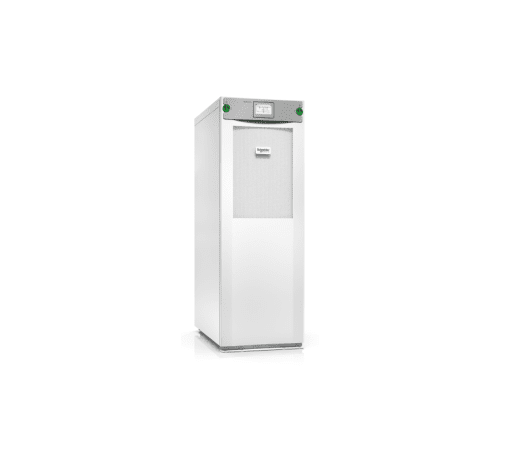

GVSUPS40K0B4GS Overview

Highly efficient, easy-to-deploy 40kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5×8 start-up service.

SKU: GVSUPS40K0B4GS Categories: APC UPS, UPS

GVSUPS40K0B4GS Technical Specifications

Galaxy VS UPS 40kW 480V for up to 4 internal 9Ah

Output
Max Configurable Power (Watts)
40.0kWatts / 40.0kVA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50Hz, 60Hz
Output Frequency (not synced)
50Hz +/-0.1% for 50Hz nominal, 60Hz +/-0.1% for 60Hz nominal
Load Crest Factor
2.5
Topology
Double Conversion Online
Waveform type
Sinewave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
<1% linear load and <5% non-linear load
Output Voltage Tolerance
+/-1% after 50ms
Bypass
Built in static bypass
Input
Input frequency
40-70Hz
Input voltage range for main operations
408 – 552 (480)V
Input Total Harmonic Distortion
Less than 3% at full load
Maximum Short Circuit Withstand (Icw)
65.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Nominal Battery Voltage
480VDC
End of Discharge Maximum Battery Current
108.0A
End of Discharge Battery Voltage
384VDC
Efficiency
View Efficiency Graph
Communications & Management
Control panel
Touchscreen LCD user interface
Audible Alarm
Audible and visible alarms prioritized by severity
Physical
Maximum Height
58.0inches (1485MM, 148.5CM)
Maximum Width
20.0inches (521MM, 52.1CM)
Maximum Depth
34.0inches (847MM, 84.7CM)
Net Weight
732.0lbs. (332.0KG)
Shipping weight
440.0lbs. (200.0KG)
Shipping Height
66.0inches (1680MM, 168.0CM)
Shipping Width
26.0inches (640MM, 64.0CM)
Shipping Depth
38.0inches (990MM, 99.0CM)
Color
Gloss level 85%, RAL 9003, White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 to 95% non-condensing %
Operating Elevation
0-3300ftft (0-990meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
10 to 80% non-condensing %
Storage Elevation
0-10|000ftft (0-3meters)
Audible noise at 1 meter from surface of unit
61.0dBA
Online thermal dissipation
4086.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CSA C22.2 NO. 107.3, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, OSHPD, UL 1778 5th edition
