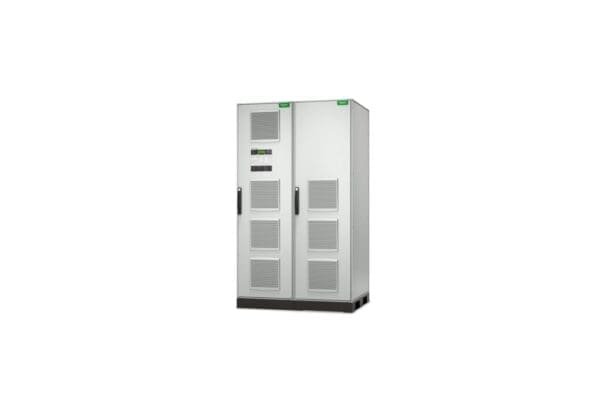

GUPXC50LFDIS Technical Specifications

GUTOR PXC UL 50kVA, 600/208V ISO Transformer Dual Feed, Start Up

Output
Max Configurable Power (Watts)
50.0kWatts / 50.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
3 : 1
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% for 0 to 100% linear load and < 5% for full non linear load
Bypass
Built-in Bypass
Input
Input frequency
60 Hz
Input Total Harmonic Distortion
Less than 5% for full load
Maximum Short Circuit Withstand (Icw)
50.0kAmps
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
82.68inches (2100MM, 210.0CM)
Maximum Width
47.24inches (1200MM, 120.0CM)
Maximum Depth
31.5inches (800MM, 80.0CM)
Net Weight
2680.82lbs. (1216.0KG)
Shipping weight
2680.82lbs. (1216.0KG)
Shipping Height
82.68inches (2100MM, 210.0CM)
Shipping Width
47.24inches (1200MM, 120.0CM)
Shipping Depth
31.5inches (800MM, 80.0CM)
Color
Light grey
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-3281ft (0-984.3meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-16404ft (0-4921.2meters)
Audible noise at 1 meter from surface of unit
65.0dBA
Online thermal dissipation
18536.0BTU/hr
Protection Class
NEMA 1, IP 42 and air filter
