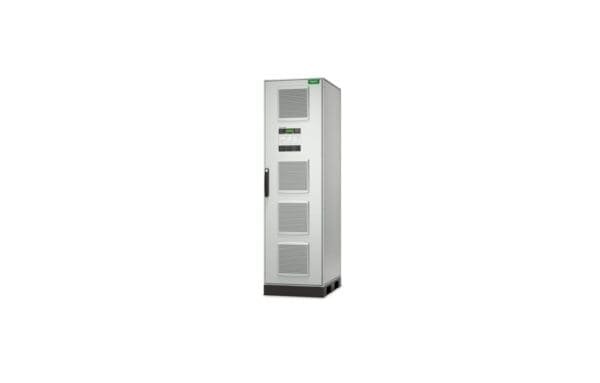

GUPXC25FS Technical Specifications

GUTOR PXC UL 25kVA, 208V, No Transformer, Start Up

Output
Max Configurable Power (Watts)
25.0kWatts / 25.0kVA
Efficiency at Full Load
92.2 %
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% at 100% linear load < 5% at 100% non-linear load (IEC 62040–3)
Output Voltage Tolerance
+/- 10%
Bypass
Built-in Bypass
Input
Input frequency
60 Hz
Input voltage range for main operations
208 – 253V
Efficiency at Full Load
92.2 %
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
Upstream protection according to source
Other Input Voltages
220
Maximum Short Circuit Withstand (Icw)
65.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
82.68inches (2100MM, 210.0CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
31.5inches (800MM, 80.0CM)
Net Weight
727.53lbs. (330.0KG)
Shipping weight
837.76lbs. (380.0KG)
Shipping Height
90.55inches (2300MM, 230.0CM)
Shipping Width
32.28inches (820MM, 82.0CM)
Shipping Depth
42.6inches (1082MM, 108.2CM)
Color
Light grey
Environmental
Operating Temperature
14 – 104 °F (-10 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
16404ft (@ERROR-@ERmeters)
Audible noise at 1 meter from surface of unit
65.0dBA
Online thermal dissipation
7216.0BTU/hr
Protection Class
IP 42 and air filter
