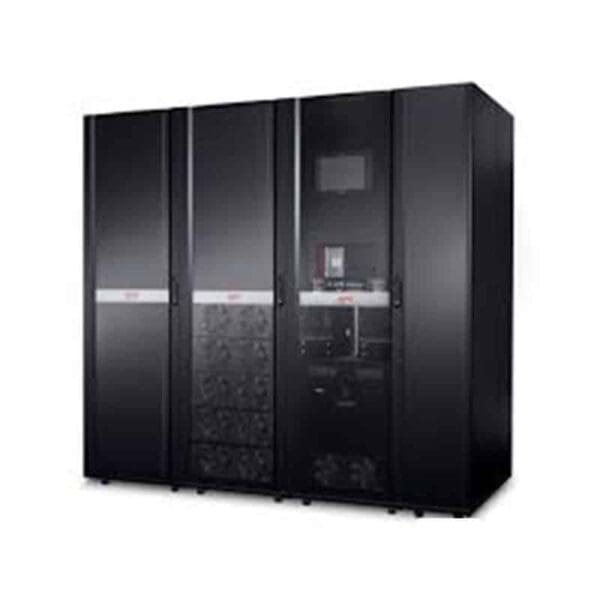

SY125K500DR-PDNB Technical Specifications

Symmetra PX 125kW Scalable to 500kW

Output
Max Configurable Power (Watts)
500.0kWatts / 500.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
415
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Output Voltage THD
< 2% linear load and <3% non-linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Transfer Time
2ms typical
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz (auto sensing)
Input voltage range for main operations
408 – 552 (480)V
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker
Other Input Voltages
415
Maximum Short Circuit Withstand (Icw)
50.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Extendable Run Time
1
Efficiency in Battery Operation
96.0 %
Efficiency
View Efficiency Graph
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Touch Screen LCD User Interface
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
78.39inches (1991MM, 199.1CM)
Maximum Width
86.61inches (2200MM, 220.0CM)
Maximum Depth
42.13inches (1070MM, 107.0CM)
Net Weight
3297.8lbs. (1499.0KG)
Shipping weight
3709.2lbs. (1686.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
73.63inches (1870MM, 187.0CM)
Shipping Depth
50.0inches (1270MM, 127.0CM)
Color
Black
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-30 – 70 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
54.0dBA
Online thermal dissipation
19427.0BTU/hr
Protection Class
NEMA 1, IP 20
Conformance
Approvals
cUL Listed, CSA C22.2 No.107.3-05, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, OSHPD, UL 1778, UL 60950-1, UL Listed
