Manufacturer :APC
Brand :APC

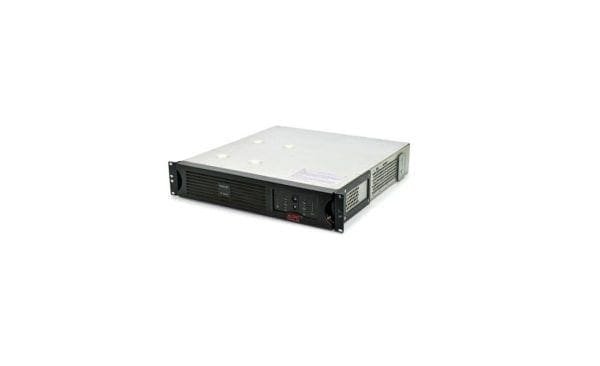

Product Line :APC Smart-UPS
Packaged Quantity :1
OUTPUT
Output Power Capacity: 480 Watts / 750VA
Max Configurable Power: 480 Watts / 750 VA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology: Line Interactive
Waveform Type: Sine wave
Output Connections:
(6) NEMA 5-15R NEMA 5-15R
INPUT
Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:
NEMA 5-15P NEMA 5-15P
Cord Length: 2.44 meters
Input voltage range for main operations: 82 – 144V
Input voltage adjustable range for mains operation: 75 – 154V
BATTERIES & RUNTIME
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Replacement Battery: RBC22
RBC™ Quantity: 1
COMMUNICATIONS & MANAGEMENT
Interface Port(s): DB-9 RS-232, SmartSlot, USB
Available SmartSlot™ Interface Quantity: 1
Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional
SURGE PROTECTION AND FILTERING
Surge energy rating: 459 Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
PHYSICAL
Maximum Height: 89.00 mm
Maximum Width: 432.00 mm
Maximum Depth: 457.00 mm
Rack Height: 2U
Net Weight: 21.82 KG
Shipping Weight: 25.11 KG
Shipping Height: 251.00 mm
Shipping Width: 594.00 mm
Shipping Depth: 603.00 mm
Color: Black
Units per Pallet: 16.00
ENVIRONMENTAL
Operating Environment: 0 – 40 °C
Operating Relative Humidity: 0 – 95%
Operating Elevation: 0-3000 meters
Storage Temperature: -15 – 45 °C
Storage Relative Humidity: 0 – 95%
Storage Elevation: 0-15000 meters
Audible noise at 1 meter from surface of unit: 42.00 dBA
Online Thermal Dissipation: 68.00 BTU/hr
CONFORMANCE
Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1449, UL 1778
Standard Warranty: 2 years repair or replace
