SMX2000LV Technical Specifications

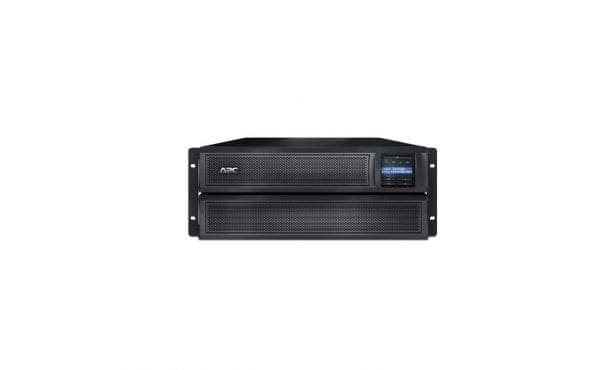

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :2000 Rack/Tower LCD
Country Kits :United States, Canada
Packaged Quantity :1
2000VA
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :USB cable – external, Power cable 8 ft, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1800 watt
Power Capacity (VA) :1920 volt ampere per kilogram 1920VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 70 – 153 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-20
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :2 millisecond
Surge Energy Rating :540 joules
Power Device Features :Audible alarm, Automatic Voltage Regulation (AVR), Hot-swappable batteries, LED indicators, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15, 1 x power NEMA L5-20, 3 x power NEMA 5-20
Battery
Run Time (Up To) :11 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :28 min at half load, 11 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Tower stand
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :NOM, REACH, CSA, EN55022 Class A, UL 1449, EN 50091-2, TUV, RoHS, UL 1778, VCCI Class A, FCC Part 15 A, BSMI
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
