SMT1500X93 Technical Specifications

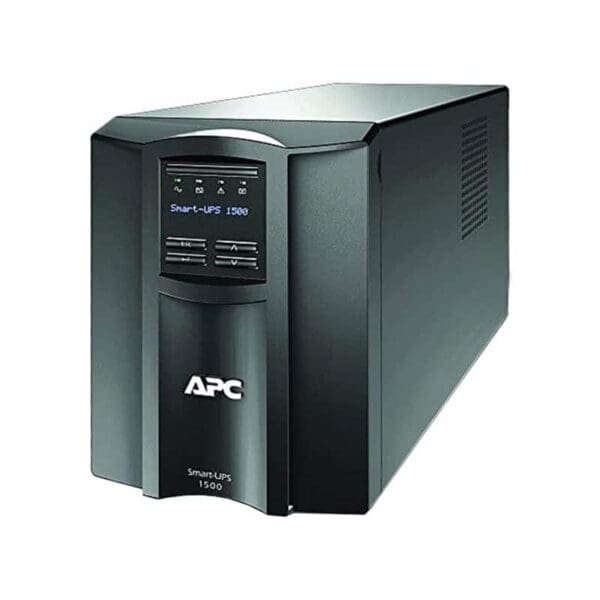

APC Smart-UPS 1500 UPS 1000 Watt 1440 VA TAA Compliant

Brand APC
Product Line APC Smart-UPS
Model 1500
Manufacturer APC
Network & Communication
Remote Management Interface
Serial, USB
Connectivity
Input Connectors
1
Interface Provided
1 x management – RJ-45, 1 x USB
Power
Batteries Quantity 1
Battery Recharge Time 3 Hours
Battery Technology Lead acid
Emergency Power Off
Audible alarm, LCD display, LED indicators
Frequency
50/60 hertz
Frequency Provided
50/60 hertz
Frequency Provided Margin
± 3Hz
Frequency Required Margin
± 3Hz
Input Connector Type
Power NEMA 5-15P
Input Voltage Range
AC 82 – 144 V
Lead Acid Battery Features
Leak-proof, Maintenance free, Sealed
Load Type
At full load
Max Run Time
17 min at half load, 5 min at full load
Output Connector Quantity
8
Power Capacity
1440 volt ampere per kilogram
Power Output Connectors Details
8 x power NEMA 5-15R
Power Provided
1000 watt
Provided Voltage
AC 120 volt
Required Voltage
AC 120 volt
Surge Response Time
0 nanosecond
Surge Suppression
Yes
Switching Capacity
10 millisecond
UPS Technology
Line interactive
Waveform Type
Sinewave
Battery Run Time (Up To)
5 minute (time unit)
Technical Information
Efficiency
90% at 100% Load
Form Factor (Power Device)
External
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
0 – 95%
Protection Type
Circuit breaker
Sound Emission
45 dBA
Product Information
Features
Mercury free
Packaged Quantity
1
Product Type
UPS
Subcategory
UPS
Included Items
Cables
Serial cable – external, USB cable – external
Dimensions & Weight
Height
8.6 inch
Weight
54.23 lbs
Width
6.7 inch
Depth
17.3 inch
Physical Characteristics
Color
Black
Certifications & Listings
Compliant Standards
China RoHS, CSA C22.2 No. 107.1, EU RoHS, FCC Part 15 B, Green Premium, REACH, UL, WEEE
ENERGY STAR Certified
No
TAA Compliant
Yes
Service & Support
Service & Support Details
Limited warranty – batteries – 2 years, Limited warranty – replace or repair – 3 years
Integrated System
3-year warranty
Energy & Performance
Surge Energy Rating
693 joules
