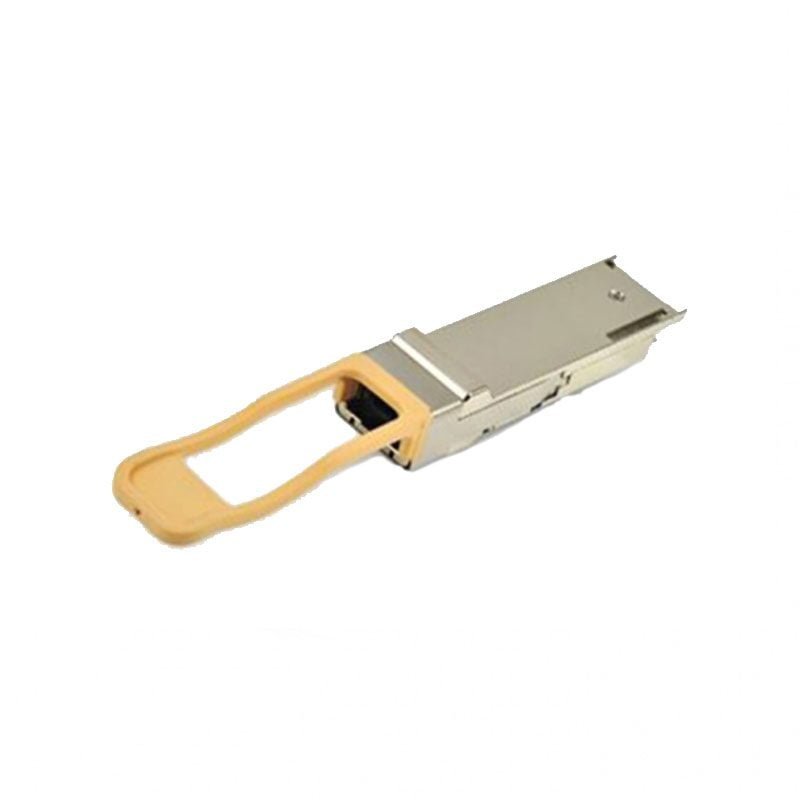

FTL4P1QM1C Technical Specifications

Transceiver Module

Hot-Pluggable QSFP Plus Transceiver Module
Supports 4 independent streams of 10G Ethernet or OTN data
4x10GBASE-LR/LW 10G Ethernet Applications
OTN OTU2, OTU1e, OTU2e Applications
44.6 Gb/s aggregate bit rates 40 Gigabit Ethernet
Up to 10km reach over Single mode Fiber  (SMF)
XLPPI electrical interface
MPO12 receptacle
Single 3.3V power supply
Power dissipation < 2.5W
Built-in digital diagnostics, including Tx/Rx power monitoring
Commercial temperature range: 0°C to 70°C
