FAP-221E Technical Specifications

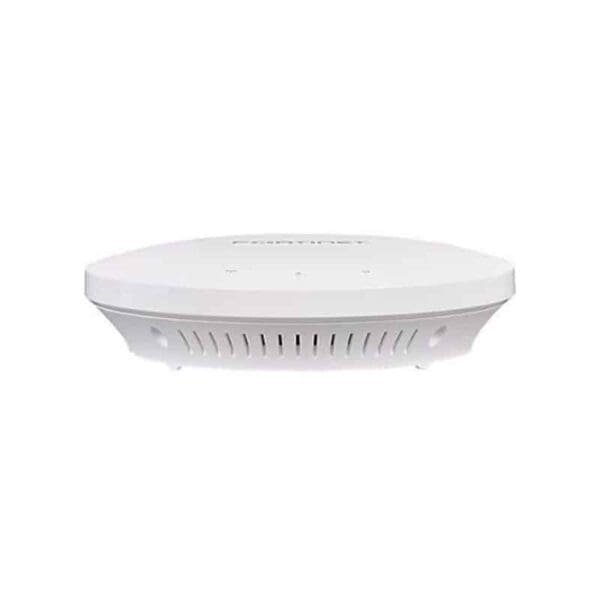

Fortinet Indoor Wireless AP 1x GE RJ45 Port

Manufacture : Fortinet
Manufacturer Part Number : FAP-221E
Hardware Type
Indoor AP
Number of Radios
2 + 1 BT/BLE
Number of Antennas
4 Internal + 1 Internal BT/BLE
Antenna Type and Peak Gain
PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Radio 1 Capabilities
2.4 GHz b/g/n (2×2:2 stream)
20/40 MHz (256 QAM)
Radio 2 Capabilities
5 GHz a/n/ac (2×2:2 stream)
20/40/80 MHz (256 QAM)
Maximum Data Rate
Radio 1: up to 400 Mbps
Radio 2: up to 867 Mbps
Interfaces
1x 10/100/1000 Base-T RJ45
Power over Ethernet (PoE)
IEEE 802.3af
Simultaneous SSIDs
16 (14 if background scanning enabled)
EAP Type(s)
SSID Types Supported
Local-Bridge, Tunnel, Mesh
Per Radio Client Capacity
Up to 512
Cellular Co-existence
Yes
LED Off Mode
Yes
