C1111-4PWN Technical Specifications

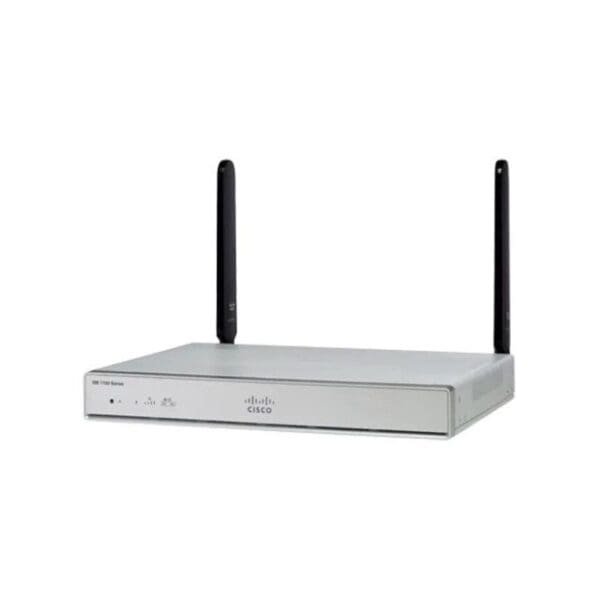

Cisco 1100 Series Integrated Services Router

Manufacturer: Cisco
Manufacturer Part Number: C1111-4PWN
Physical Properties
Dimensions (H x W x D)
Non-LTE models:
Weight with AC PS (w/o modules)
5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage
Universal: 100 to 240 VAC
Frequency: 50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current: 90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port: One RJ-45: Separate console port, USB 3.0 Type A host port, USB devices supported, USB flash memory
Wireless VLANs: 32 (encrypted and non-encrypted VLANs)
Wireless specifications: 2×2 .11ac Wave 2
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
