SY100K250D Technical Specifications

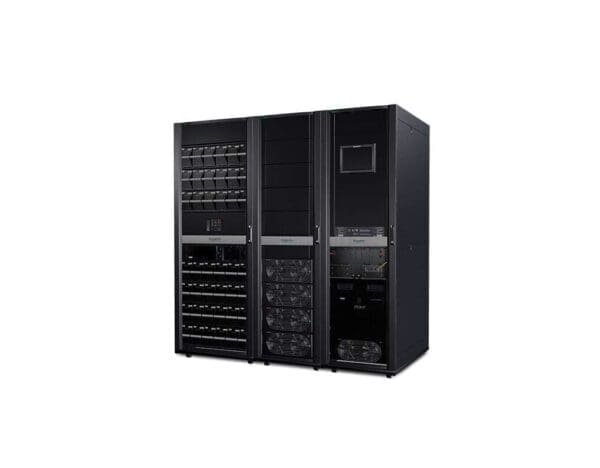

Symmetra PX 100KW Scalable to 250KW Without Maintenance

Output
Max Configurable Power (Watts)
500.0kWatts / 500.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
415
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Output Voltage THD
< 2% linear load and <3% non-linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Transfer Time
2ms typical
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz (auto sensing)
Input voltage range for main operations
340 – 460 (400V), 408 – 552 (480)V
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker
Other Input Voltages
415
Maximum Short Circuit Withstand (Icw)
50.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
7
Typical recharge time
3hour(s)
Nominal Battery Voltage
+/-288V
Battery Slots Empty
1
RBC Quantity
6
Battery Volt-Amp-Hour Capacity
36288
Extended Run Options
Symmetra-PX-100KW-Scalable-to-250KW-Without-Maintenance-Bypass-or-Distribution-Parallel-Capable
Efficiency in Battery Operation
96.5 %
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
SYPX250-500_Parallel
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Touch Screen LCD User Interface
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
78.39inches (1991MM, 199.1CM)
Maximum Width
92.52inches (2350MM, 235.0CM)
Maximum Depth
42.13inches (1070MM, 107.0CM)
Net Weight
4987.4lbs. (2267.0KG)
Shipping weight
5537.4lbs. (2517.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
