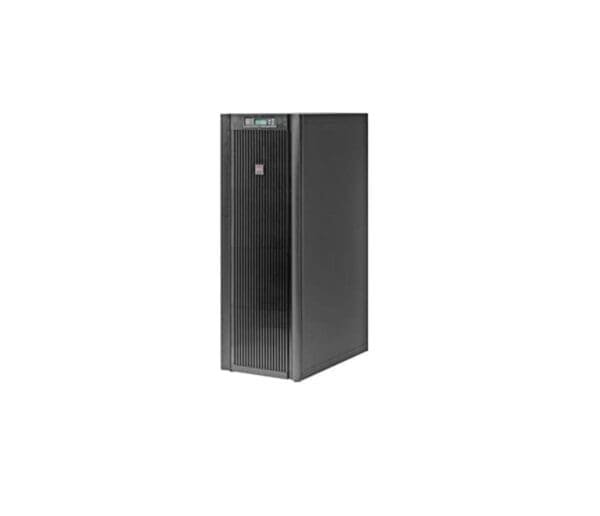

SUVTP20KF2B4S Technical Specifications

APC Smart-UPS VT 20kVA 208V w/2 Batt Mod

Output
Max Configurable Power (Watts)
16.0kWatts / 20.0kVA
Output Voltage Note
Configurable for 208 and 220V – 3 Phase
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Maximum Output Current
61
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
165 – 240V
Other Input Voltages
220
Input Power Factor at Full Load
0.98
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
2
Typical recharge time
5hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Battery Slots Empty
2
Expected Battery Life (years)
3 – 5
RBC Quantity
2
Battery Charge Power (Watts)
1.002kWatts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
5021
Extended Run Options
APC-Smart-UPS-VT-20kVA-208V-w-2-Batt-Mod-Exp-to-4-Start-Up-5X8-Int-Maint-Bypass-Parallel-Capable
End of Discharge Battery Voltage
+/-154 V
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
59.0inches (1499MM, 149.9CM)
Maximum Width
20.6inches (523MM, 52.3CM)
Maximum Depth
32.01inches (813MM, 81.3CM)
Net Weight
979.0lbs. (445.0KG)
Shipping weight
1047.0lbs. (475.91KG)
Shipping Height
64.7inches (1643MM, 164.3CM)
Shipping Width
25.6inches (650MM, 65.0CM)
Shipping Depth
41.8inches (1062MM, 106.2CM)
Color
Black
Units per Pallet
1.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-50 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
4238.0BTU/hr
Protection Class
NEMA 1
Conformance
Approvals
cUL Listed, ISO 14001, ISO 9001, UL 1778
