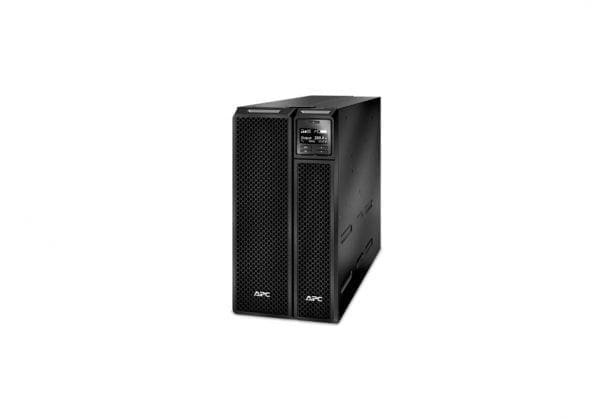

SRT3000XLT-5KTF APC Smart-UPS SRT 3000VA Step-Down Transformer

SRT3000XLT-5KTF Overview

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U.

SKU: SRT3000XLT-5KTF Categories: APC UPS, UPS

SRT3000XLT-5KTF Technical Specifications

APC Smart-UPS SRT 3000VA 208/240V to 120V Step-Down Transformer

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :3000VA
Bundled with :208/240V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type A, 1 x serial – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external, Power cable – integrated – 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120/208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-20
Input Connector Qty :1
Output Connector Type :Power NEMA 5-20, Power NEMA L14-30, Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :14
Surge Suppression :Yes
Surge Energy Rating :340 joules
Power Device Features :Internal bypass, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L6-30, 1 x power NEMA L14-30, 8 x power NEMA 5-20, 4 x power NEMA L6-20
Battery
Run Time (Up To) :3.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :3.8 min at full load, 11.4 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :FCC Part 15 A, REACH, IP20, RoHS, UL 1778
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :8.5 inch
Depth :25 inch
Height :17 inch
Weight :194 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.7 inch
Shipping Depth :38.6 inch
Shipping Height :23.4 inch
Shipping Weight :220.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
