QDD-400G-DR4 Technical Specifications

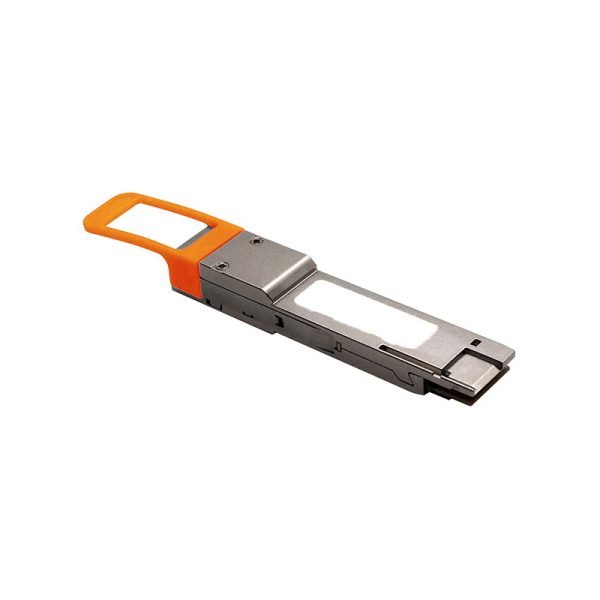

Juniper QSFP56-DD 400G DR4 Transceiver

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Line Properties
Line Coding Format :PAM4
Networking
Type :QSFP-DD Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 400GBase-DR4, 4x Ethernet 100GBase-DR
Data Link Protocol :400 Gigabit Ethernet
Data Transfer Rate :400 GBps
Optical Wave Length :1310 nm
Max Transfer Distance :1640 ft
Features :Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
Connectors (for SD)
Left Connector Type :MPO-12 single-mode
Interface Provided
Interfaces :1 x Ethernet 400GBase-DR4 – MPO-12 single-mode
Power Device
Power Consumption Operational :12 watt
Miscellaneous
Compliant Standards :MSA
Dimensions & Weight
Width :0.7 inch
Depth :3.7 inch
Height :0.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Compatibility
Compatible With :Juniper Networks QFX Series QFX5220-32CD
