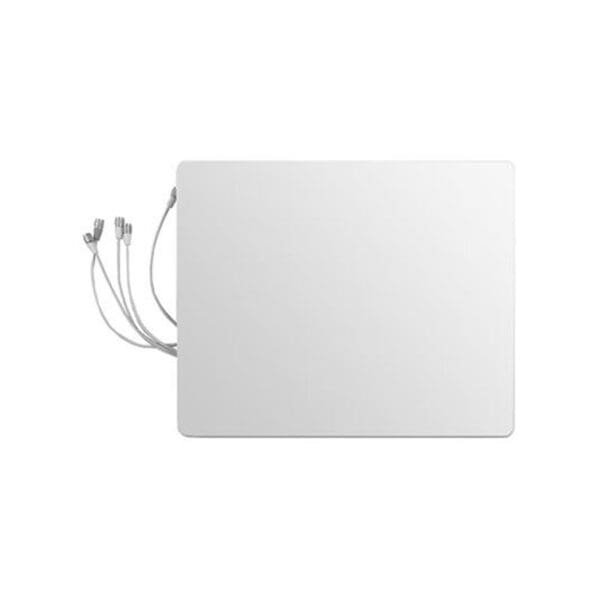

MA-ANT-3-F5 Technical Specifications

Cisco Meraki Antenna

General
Category of Accessory :Antenna
Compatible With :Cisco Meraki MR42
Antenna
Antenna Placing Mounting :Pole mount, Wall-mountable
Cable Length :3.3 ft
Frequency Range :2.4 – 2.5 GHz, 5.15 – 5.875 GHz
Gain :10.8 dBi (for 5 GHz), 11.2 dBi (for 2.4 GHz)
Horizontal Beamwidth :30°
Intended For :Wi-Fi
Vertical Beamwidth :30°
Environmental Parameters
Humidity Range Operating :5 – 93%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Manufacturer :Meraki
Packaged Quantity :1
Product Line :Cisco Meraki
Interface Provided
Connector Qty :5
Connector Type :RP-TNC Connector
Miscellaneous
Color Category :White
Features :Tilt adjustment +45° to -45°
Mounting Kit :Included
Product Material :ABS plastic
Product Type :Antenna
