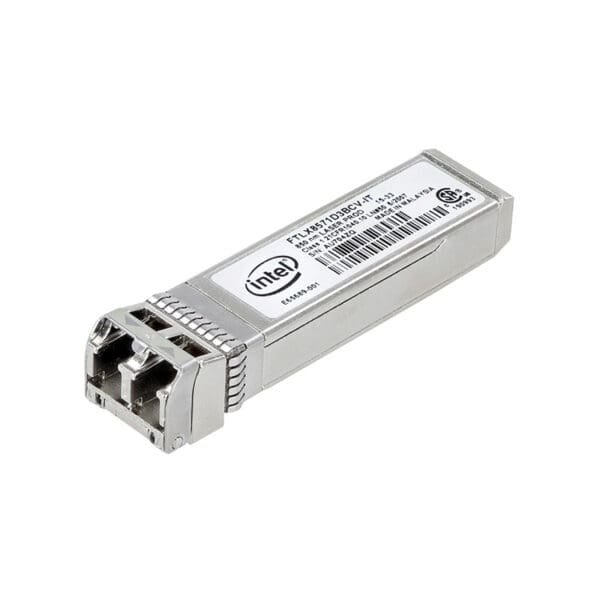

FTLX8571D3BCV-IT Technical Specifications

Intel 1000Base-SX 10Gb Ethernet SFP+ Transceiver Module

Hot-pluggable SFP+ footprint
Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation < 1 W
RoHS-6 compliant (lead-free)
Commercial temperature range 0 °C to 70 °C
Single 3.3 Vdc power supply
Max. link length 300 m on 2000 MHZ-km MMF (SR), 10 km (LR)
Uncooled 1310 nm DFB laser (LR)
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Distance: 400 m
Data Rate (max): 10.3 Gb/s
Protocol: Optical Gigabit Ethernet Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: Digital
Transmitter: VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 850nm Band
