FTLX1471D3BCV-IT Technical Specifications

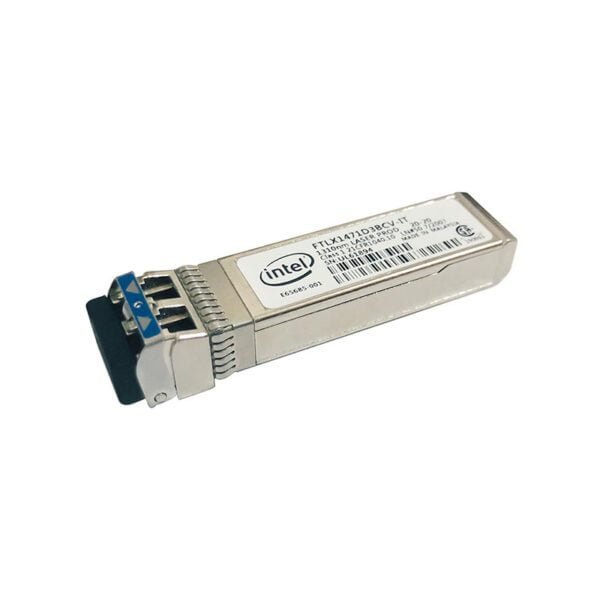

Intel 1.25-10.31Gbps 10GBase-LR SMF 10km Transceiver Module

Hot-pluggable SFP+ footprint
Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range -5°C to 70°C
Single 3.3V power supply
Maximum link length of 10km
Uncooled 1310nm DFB laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Device Type : Sfp+ Transceiver Module
Enclosure Type : Plug-in Module
Connectivity Technology : Wired
Cabling Type : 1000base-lx, 10gbase-lr
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet
Optical Wave Length : 1310 Nm
Interfaces : 1 X Network – Ethernet 10gbase-lr
