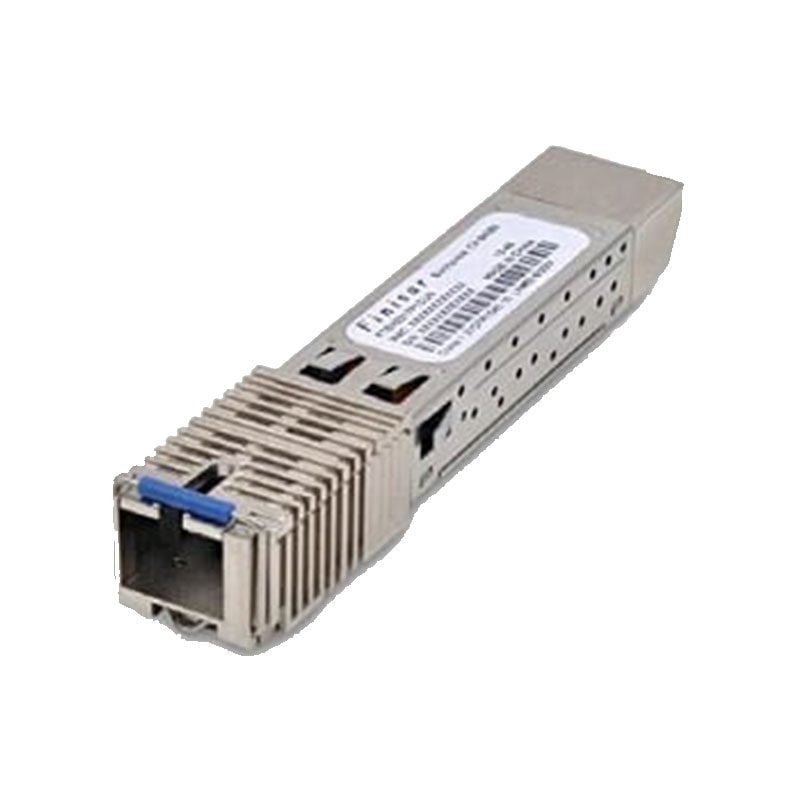

FTEN2117P1NUN-BC Technical Specifications

TX/RX Optical Fiber 1250Mbps 1310nm/1500nm

Full-duplex transceivers for optical data links over two glass optical fibers
Short-Reach 850nm VCSEL Multimode or Long-Reach 1310nm DFB Single-mode available (SMF)
Multi-rate and Rate Select versions available
Compact form-factor: Half the size of SFF transceivers
Board-mounted
Built-in digital diagnostic functions
LC Duplex  optical connection
Single 3.3V power supply
Interoperable with standard SFP and SFP Plus optical transceivers
Extended operating temperature range of -40°C to 85°C
Extreme storage temperature range from -57°C to 100°C
Option for conformal coating for high reliability in corrosive environments
Qualified to applicable tests in MIL-STD-810G, MIL-STD-883 and GR-486-CORE
Meets applicable requirements for Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel
