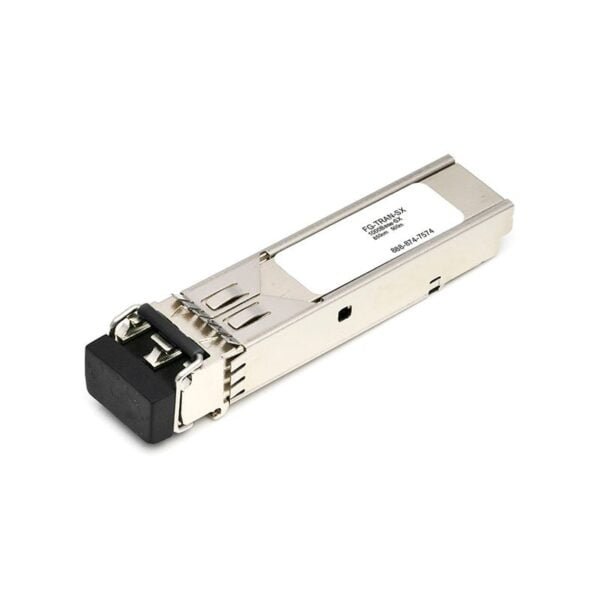

FN-TRAN-SX Technical Specifications

Giga tech Hot Pluggable 1.25Gbps Data Rate 1000BASE-SX Gigabit Ethernet Multimode Fiber (MMF) SFP Transceiver

Brand: Fortinet
Product Line: Fortinet
Model: FN-TRAN-SX
Manufacturer: Fortinet
Network & Communication
Cable Type: Ethernet 1000Base-SX
Compliant Standards: IEEE 802.3z
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Data Transfer Rate: 1.25 GBps
Features: Auto-negotiation, Hot swappable
Form Factor: Plug-in module
Max Transfer Distance: 1640 ft
Optical Wave Length: 850 nm
Product Type: SFP (mini-GBIC) transceiver module
Connectivity
Interface Provided: 1 x Ethernet 1000Base-SX – LC multi-mode female x 2
Power
Power Consumption Operational: 850 megawatt
Cables
Left Connector SD Type: LC multi-mode
Technical Information
Max Operating Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Product Information
Packaged Quantity: 1
Certifications & Listings
ENERGY STAR Certified: No
Compatibility
Compatibility Specs: Fortinet FortiGate 900G, 901G, 90G, 91G
