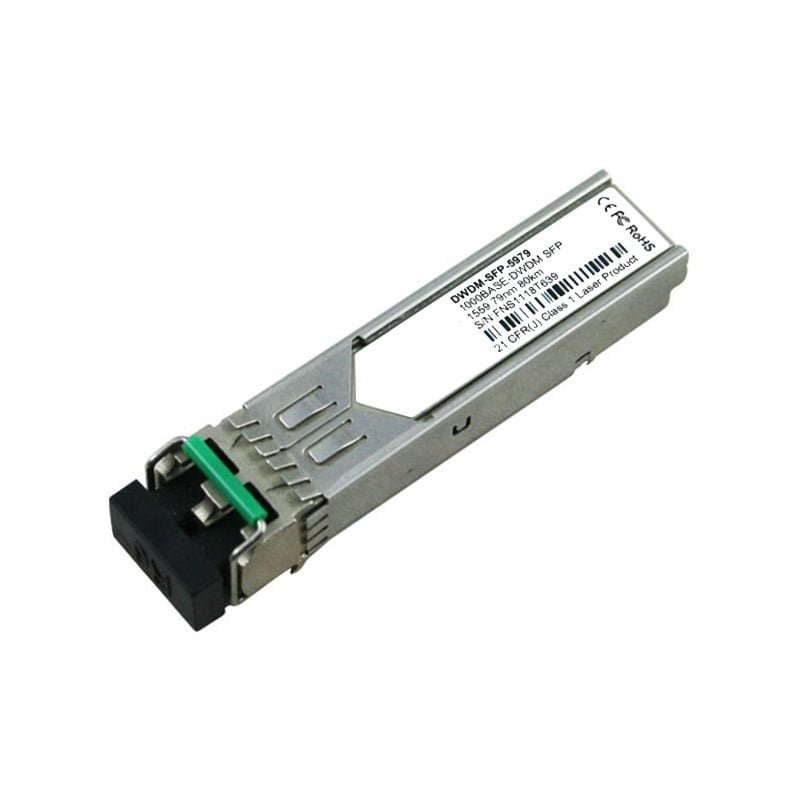

DWDM-SFP-5979 Technical Specifications

Cisco 1000BASE-DWDM SFP Transceiver

Features
Functionally identical to Cisco DWDM-SFP-5979
Product Line Cisco Transceiver
Support up to 1.25Gb/s data links
Up to 80km on 9/125µm G.652D single mode fiber
100GHz ITU Grid, C Band
Support Digital optical monitoring function for enhanced diagnostics and troubleshooting
Use with DWDM MUX/DEMUX, combined DWDM fiber solution
Reduce cost of leasing or laying fiber 1000BASE
Specification
Form Factor DWDM SFP Data Rate 1.25 Gb/s
Wavelength CH22 – 1559.79nm Fiber Type SMF
Fiber Mode Supported Single-mode fiber (SMF)
Max Distance 80 km
SFP
Optical Components
DWDM DFB/PIN
Transmitter Power 0 ~ 5 dBm Extinction ratio > 9 dB
Receiver Sensitivity < -26 dBm Receiver Overload > 0 dBm
Connector Duplex LC Digital Diagnostic Monitoring Yes
Environment Operating:
0°C to 70°C
Storage: -40°C to 85°C Weight 0.025 kg
Application C Band DWDM networks
Fiber channel over DWDM
Gigabit Ethernet over DWDM Compliance IEC/EN 61000-4-2, IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
