DS-X2-FC10G-LR Technical Specifications

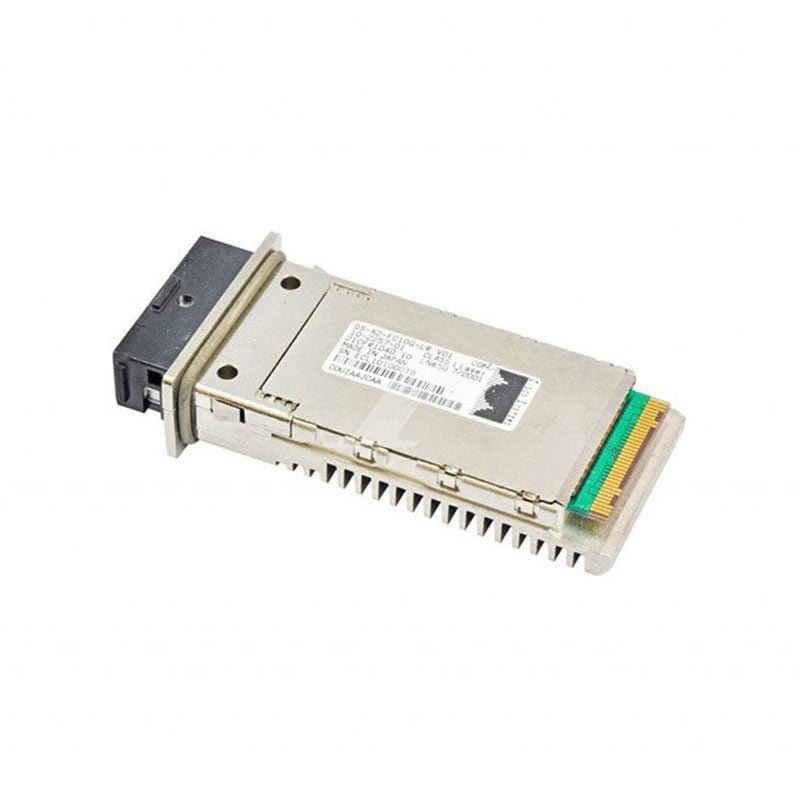

Cisco 10Gbps Fibre Channel LR X2 Transceiver.

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number DS-X2-FC10G-LR
Brand Name Cisco
Description: Cisco 10-Gbps Fibre Channel-Long-reach, X2, SC
Device Type: Plug-in module
Form Factor: Cisco X2
Cisco Transceiver
Date Rate: 10.3125Gbps
Wavelength: 1310nm
Power Budget: 10dB
Max Reach Distance: 10km
Transmit Power: -6~-1dBm
Receive Sensitivity: -15dBm
Voltage: +5.0 V/ +3.3 V
Power Consumption: <4W
Connector: Dual SC/PC
Fiber Type: SMF
Operation Temperature: 0~70 °C
DDMI: With
Application: Fiber Channel
