C1117-4PWA Technical Specifications

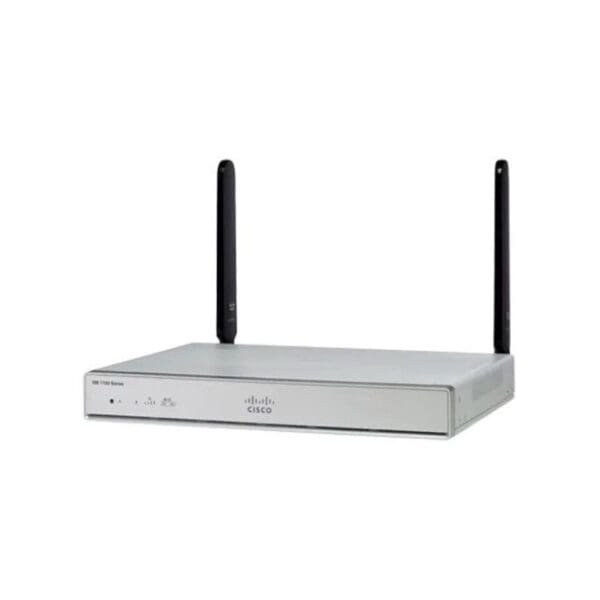

Cisco 1100 Series Integrated Services Router

Manufacturer: Cisco
Manufacturer Part Number: C1117-4PWA
AC Input Power
Input voltage: Universal 100 to 240 VAC
Frequency: 50-60 Hz
Input current: PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current: 90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port: One RJ-45: Separate console port
USB port
USB 3.0 Type A host port
USB devices supported: USB flash memory
Console port
One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs
32 (encrypted and non-encrypted VLANs)
Wireless specifications
2×2 .11ac Wave 2
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
Inline PoE
4 ports for -8P PIDs, 2 ports for -4P PIDs
Acoustic for Cisco 1100 Series ISRs
Not Applicable – Fanless design
