C1111-8PWH Technical Specifications

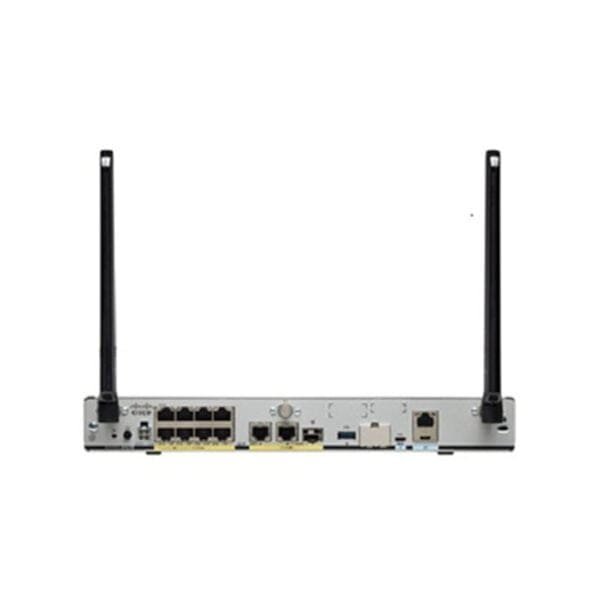

Cisco 1100 Series Integrated Services Router

Manufacturer : Cisco
Physical Properties
Dimensions (H x W x D)
Non-LTE models:
Weight with AC PS (w/o modules)
5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage
Universal 100 to 240 VAC
Frequency
50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current
90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port
One RJ-45: Separate console port
USB port
USB 3.0 Type A host port
USB devices supported:
USB flash memory
Console port
10/100/1000 Gigabit Ethernet
Two GE ports allocated among RJ45 and SFP as:
Wireless VLANs
32 (encrypted and non-encrypted VLANs)
Wireless specifications
2×2 .11ac Wave 2
Default and maximum DRAM; 4GB
Default and maximum flash: 4GB
