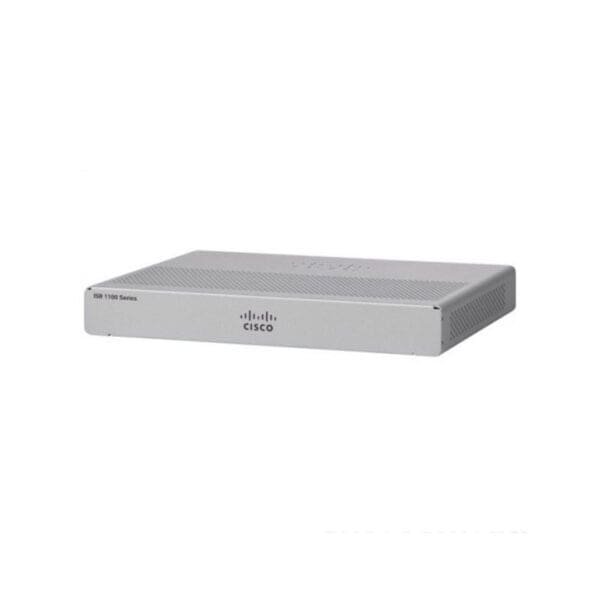

C1111-4PWD Technical Specifications

Cisco 1100 Series Integrated Services Router

Manufacturer: Cisco
Manufacturer Part Number: C1111-4PWD
AC Input Power
Input voltage
Universal: 100 to 240 VAC
Frequency: 50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current
90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port
One RJ-45: Separate console port
USB port
USB: 3.0 Type A host port
USB: devices supported:
USB: flash memory
Wireless VLANs
32 (encrypted and non-encrypted VLANs)
Wireless specifications
2×2 .11ac Wave 2
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
Inline PoE
4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+
Acoustic for Cisco 1100 Series ISRs
Not Applicable – Fanless design
